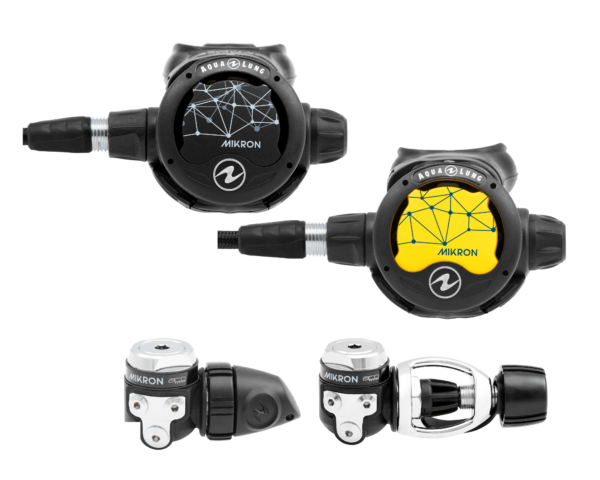

Mikron ACD (DIN/YOKE) Regulator

Lighter than air? No, but you get the idea.

The Mikron is the smallest and lightest regulator in the Aqualung collection.

Equipped with our patented auto-closure device plus a pneumatically balanced second stage, this small but mighty regulator lets you float comfortably through baggage claim and the deep blue alike.

Add To Enquiry
Loading...

Description

First Stage

  • 1st Stage Technology:  Diaphragm, Balanced
  • Mechanism:  T-Shape
  • Maximal Working Pressure:  232 bar in Yoke Version/300 bar in DIN Version
  • ACD System :  Yes
  • Number of HP Ports:  2 (7/16” UNF)
  • Number of HP Ports:  4 (3/8” UNF)
  • Medium Pressure:  5 bar (145 psi)
  • Flow Rate (Surface Hose):  1,450l/min, HP = 200 bar (2900 psi)
  • Body:  Marine Brass, Bright, Chrome Plating
  • Spring  :  Stainless Steel
  • Conical Filter :  Sintered Bronze
  • O-Rings:  EPDM



Second Stage

  • 2nd Stage Technology:  Balanced
  • Mechanism:  Demand Valve, Downstream Poppet
  • Cracking Effort:   8 to 3.8mbar (0.04 to 0.05 psi)
  • Cracking Effect Knob: Yes
  • Box Bottom, Deflector: ABS
  • Purge Cover : Polyurethane
  • Mouthpiece, Exhaust Valve :  Silicone
  • Poppet:  Polyurethane
  • Adjustable Crown : Marine Brass, Bright, Chrome Plating
  • Overall work of breathing scores : Avg. 1.10 joules/liter

Additional information

Brand

Aqualung
